KEB Drive
Drive Corrugated Box Machine
| Specification | Details |
|---|---|
| Phase | 3 Phase |
| Motor Type | Servo |
| Model Name/Number | F5 Series |
| Brand | KEB |
| Input Phase | Three Phase |
| Brand Name | KEB F5 AC |
KEB F5 AC Drive for Corrugated Box Machines
A high-performance frequency inverter made especially for corrugated box machines, the KEB F5 AC Drive improves operational efficiency and offers accurate motor control. It is appropriate for a range of applications in the packing sector due to its power range of 0.37 kw to 900 kw and compatibility with both synchronous servo drives and asynchronous three-phase motors.
Key Features:
- Modular Communication Options: The F5 AC Drive may be easily integrated into a variety of control systems because to its compatibility for several communication protocols, including as ProfiNet, EtherNet/IP, Modbus, and Ethercat.
- High-Speed Performance: Designed for precise torque control and quick reaction, the drive greatly increases the productivity of corrugated box manufacturing processes.
- User-Friendly Setup: KEB’s Combivis 6 software makes installation and startup simple, enabling speedy configuration and commissioning.
Applications:
- Corrugated box manufacturing lines
- Material handling and conveyor systems
- Printing and finishing equipment
- Packaging and labeling machinery
- Industrial automation and process control
Because of its precision and long-lasting construction, the KEB F5 AC Drive is a great choice for sectors that need dependable motor control and effective corrugated box manufacturing. It satisfies the many requirements of contemporary packaging applications because to its sophisticated features and adaptability.
KEB Card
| Specification | Details |
|---|---|
| Model Name/Number | 1MF |
| Usage/Application | Industrial |
| Brand | KEB Drive |
| Model Name/Number | 2MF5K81-GZ18 & 1 MF5K81-G18 |
MCGS HMI TPC7062TD(KT) – 7-Inch Touchscreen Human Machine Interface
The 7-inch MCGS TPC7062TD(KT) HMI (Human Machine Interface) is made for dependable and effective control in industrial automation settings. Its user-friendly interface and bright TFT LCD touchscreen allow it to integrate with PLCs, inverters, and other field devices with ease. It also supports a variety of connection protocols. The TPC7062TD(KT) is designed to satisfy the demands of contemporary control systems while guaranteeing steady and long-term performance thanks to its strong hardware, quick response, and strong configuration tools.
Applications:
- NC cutters and corrugated box machines
- Equipment for printing and packaging
- Factory automation control panels
- Textile and labelling equipment
- Lines for food processing and assembly
The MCGS TPC7062TD(KT) HMI is small, easy to use, and robust. It offers effective operation and clear visual control for a range of industrial applications.
Keb Combivert F5 Corrugated Box Machine
| Specification | Details |
|---|---|
| Phase | 3 Phase |
| Motor Type | Servo |
| Model Name/Number | F5 Series |
| Brand | KEB |
| Input Phase | Three Phase |
| Brand Name | KEB F5 AC |
Combivert F5 Drive for Corrugated Box Machines
A strong and adaptable frequency inverter designed specifically for use in corrugated box machines is the Combivert F5 Drive. The precise motor control provided by this high-performance drive ensures excellent performance in tough packaging settings. It is appropriate for a variety of applications since it can support both synchronous servo drives and asynchronous three-phase motors, with a power range of 0.37 kW to 900 kW.
Applications:
- Corrugated box manufacturing lines
- Material handling and conveyor systems
- Printing and finishing equipment
- Packaging and labelling machinery
- Industrial automation and process control
Because to its precision and long-lasting engineering, the Combivert F5 Drive is a great option for industries that need dependable motor control and effective corrugated box production. It satisfies the many requirements of contemporary packaging applications because to its sophisticated features and adaptability.
KEB Combivert F5 Series Drive Corrugated box Machine
| Specification | Details |
|---|---|
| Motor Compatibility | Servo Motors |
| Current | 25A |
| Brand | KEB |
| Model Name/Number | Combivert F5 Series 15kw To 22kw |
| Phase | Triple Phase |
| Output Power | 35 kVA |
| Input Phase | 3 – Phase |
| Voltage | 440V AC |
| Mounting Type | Panel Mount |
| Output Current | 50 Amp |
| Output Frequency | 0-599 Hz |
| Input Frequency | 50/60 Hz |
| Input Current | 63 Amp |
KEB Combivert F5 Series Drive for Corrugated Box Machines
A high-performance frequency inverter made especially for corrugated box machines, the KEB Combivert F5 Series Drive offers accurate motor control and increased operational efficiency. Its power range of 0.37 kW to 900 kW makes it suitable for a variety of packaging industry applications. It may be used with both synchronous servo drives and asynchronous three-phase motors.
Applications:
- Corrugated box production lines
- Material handling and conveyor systems
- Printing and finishing machinery
- Packaging and labeling equipment
- Industrial automation and process control
Designed for durability and precision, the KEB Combivert F5 Series Drive is an excellent solution for industries requiring reliable motor control and efficient operation in corrugated box manufacturing.

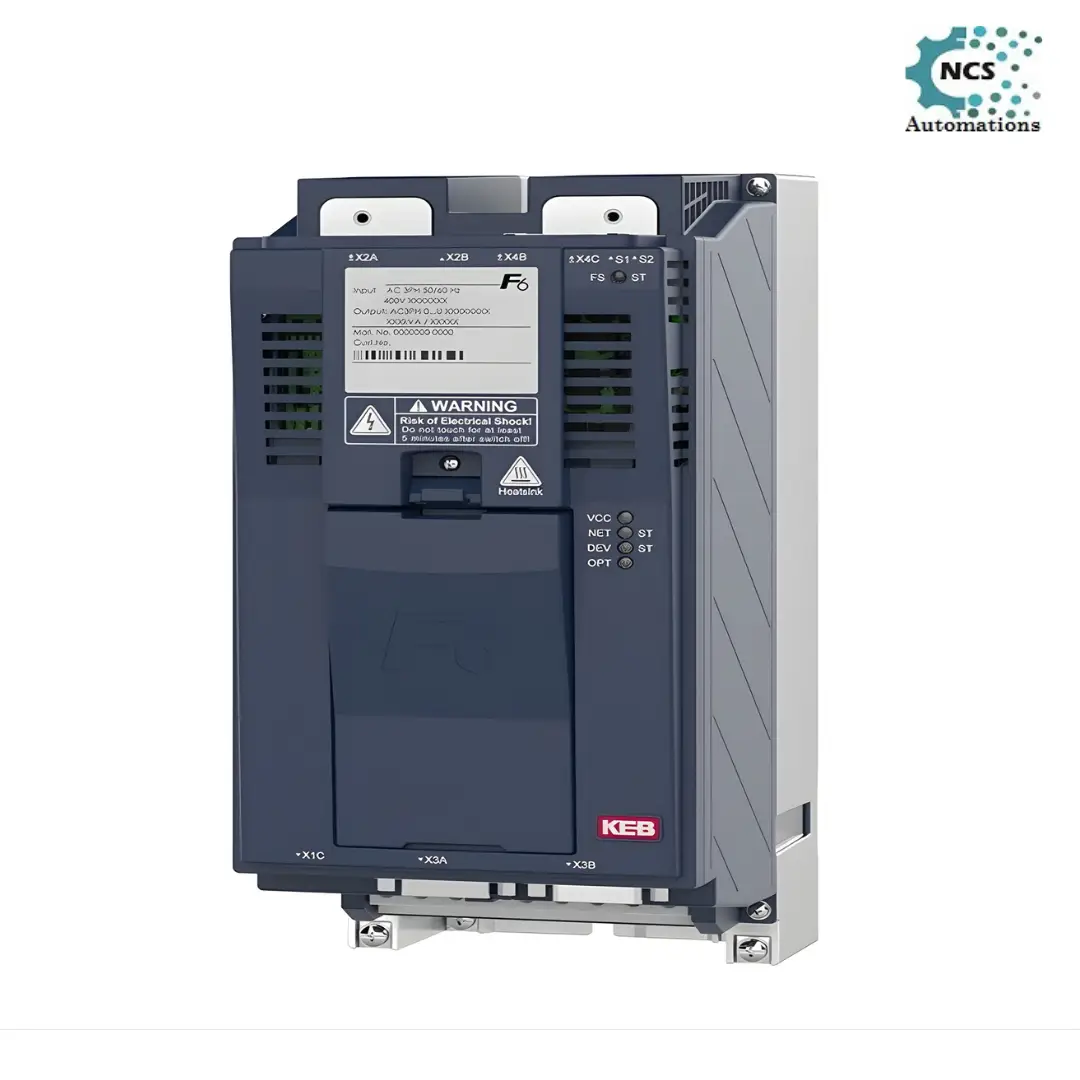

KEB Drive F6 Series
| Specification | Details |
|---|---|
| Functional Safety | Integrated functional safety functions |
| Interfaces | CAN interface, Realtime Ethernet |
| LCD Display | LCD Operator, Ethernet Operator, USB Operator |
| I/O | 8 digital inputs, 2 digital outputs, 1 relay, 2 analog inputs, 1 analog output, 24V DC supply |
| Status LEDs | Multiple status indication LEDs |
| Diagnostic Interface | Available for diagnostics and monitoring |
| Multi Encoder Interfaces | Resolver, EnDAT, HIPERFACE, BiSS, SSI, Incremental HTL/TTL, Incremental output |
| PTC / KTY / PT1000 Evaluation | Supported |
| Brake Control | 24V / 2A |
| Motor Terminals | Dedicated motor terminals |
| DC Supply Terminals | DC supply and braking resistor connection |
| Mains Connections | Integrated mains power connections |
| Supported Fieldbus Systems | EtherCAT, Safety over EtherCAT, VARAN, CANopen |
KEB F6 Series Drive – Specification Information Description
The KEB F6 Series is a high-performance drive solution engineered to control a wide variety of motor technologies with exceptional precision and dynamic response. Designed for demanding industrial applications, the F6 Series ensures smooth operation, optimal energy usage, and long-term reliability. Featuring integrated safety, versatile communication interfaces, and powerful motion control capabilities, the F6 drives perfectly align with modern automation standards.
This drive system includes comprehensive diagnostic features, multi-encoder support, and flexible I/O configurations to simplify installation and commissioning. With advanced protection and torque-control functions, the F6 Drive Series delivers stable performance even in harsh industrial environments. It supports multiple fieldbus systems, enabling seamless connectivity with existing automation infrastructures.
